Grinder for Abrasive Materials

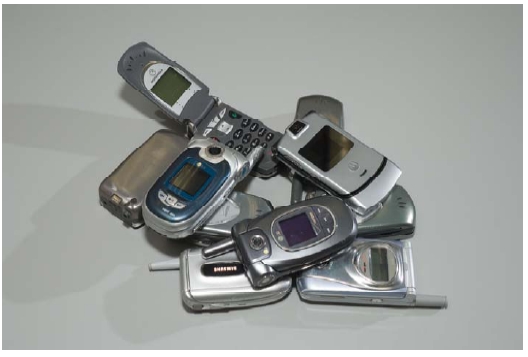

Suitable for E-waste, PCB Scrap.

We have sold units for electronic waste recycling to such world wide industry leaders as IBM and Apple Computer. Currently we are building several machines for very similar applications for companies in Singapore, Malaysia, and Indonesia. Due to confidentiality agreements we are not at liberty to divulge who they are. We conducted testing on these companies  materials and they placed their orders based on the success we achieved in these tests.

Bottom discharge units for grinding moderately to highly abrasive materials.

• Specifically designed to withstand the abuse of grinding abrasive materials
• Heavy-duty, replaceable, abrasion-resistance wear plates in mill top and base
• Heavy-duty hard-faced or heat-treated hammers with four wearing edges for long service life
• Heavy-duty rotor assembly
• Rugged bar screens, or thick perforated metal screens to size materials
• Dust-tight or water-tight construction
• All stainless steel construction available
• Structural steel sub-based for V-drive or direct connection
• Mill-top metal traps at no extra charge
• Special configurations on request

Model	Rotor Diameter	Typical Horsepower	Mill Speed (Maximum Rotor RPM)
WA-6-L	9"	2	5,000
WA-8-L	9"	3	5,000
WA-8-H	16"	5-20	3,600
WA-12-L	16"	10-20	3,600
WA-16-L	16"	10-25	3,600
WA-12-H	18"	15-50	3,000
WA-16-H	18"	15-50	3,000
WA-20-L	18"	20-50	3,000
WA-25-L	18"	20-25	3,000
WA-20-H	24"	25-75	2,800
WA-25-H	24"	25-75	2,800
WA-30-L	26"	50-100	2,400
WA-36-L	26"	50-100	2,400
WA-30-H	30"	50-150	1,800
WA-36-H	30"	50-150	1,800
WA-40-L	30"	50-150	1,800
WA-50-L	30"	50-150	1,800
WA-60-L	30"	50-150	1,800
WA-40-H	40"	60-200	1,200
WA-50-H	40"	60-200	1,200
WA-60-H	40"	60-200	1,200
